OmniRelay

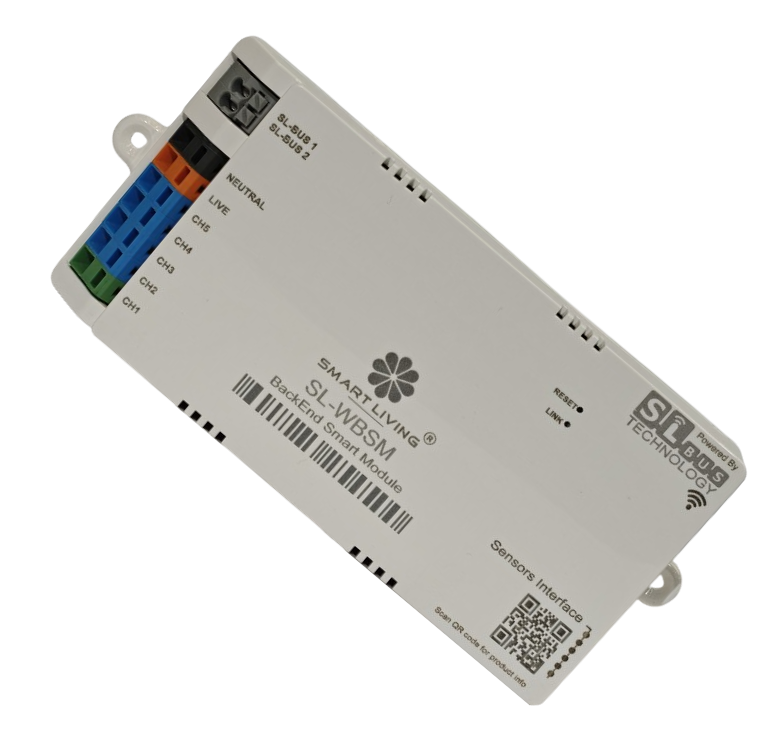

OmniRelay5S
SL-WBSM-R5
Reliable Switching. Zero Cross Precision.
5-channel high-performance relay module with 6 sensor inputs is designed for lighting, appliances and automation loads with industrial-grade reliability.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel Relay (3A MAX per channel OHMIC Load), Total Current <12AMP
Input Interface: 6/8-Channels – AC Sensor Inputs

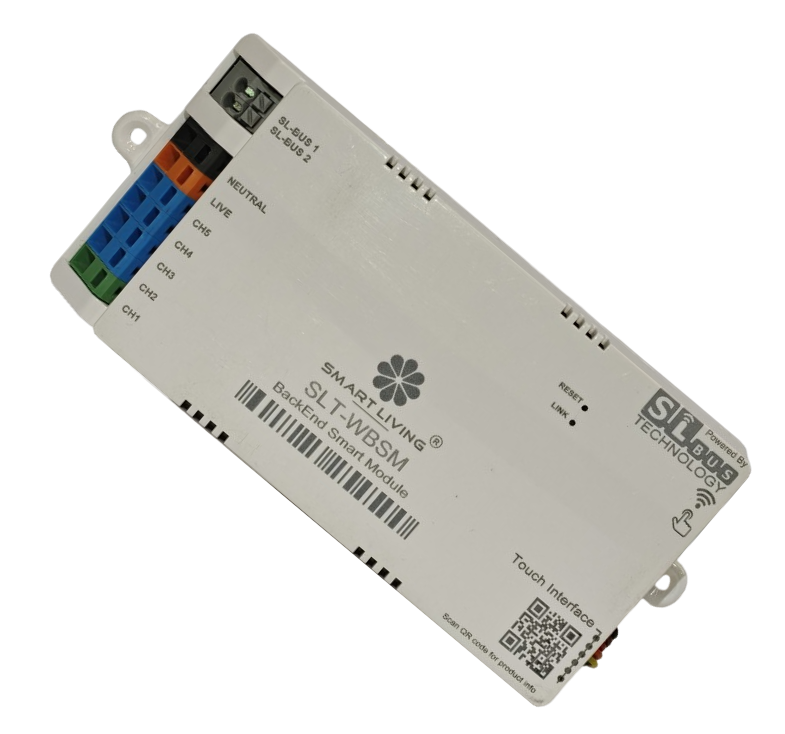

OmniRelay5T
SLT-WBSM-R5
Control Elevated.
A 5-channel relay powerhouse featuring a 6-input touch interface for industrial- grade reliability and rapid deployment of premium smart home solutions
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel Relay (3A MAX per channel OHMIC Load), Total Current <12AMP
Input Interface: 6/8-Channels – Capacitive Touch Sensor Inputs

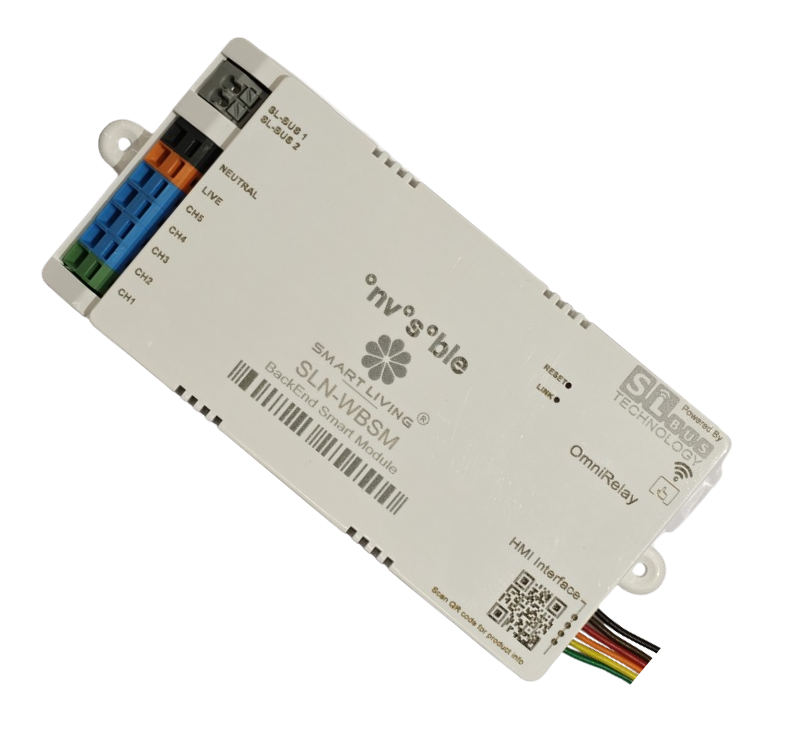

OmniRelay5N
SLN-WBSM-R5
High-Density Control, Meets Luxury.
A 5-channel relay powerhouse featuring a 8-button HMI interface, designed for the rapid implementation of advanced touch displays and high-end navigation panels.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel Relay (3A MAX per channel OHMIC Load), Total Current <12AMP
Input Interface: 6/8-Channels – HMI Touch LCD Panel Inputs
OmniDim

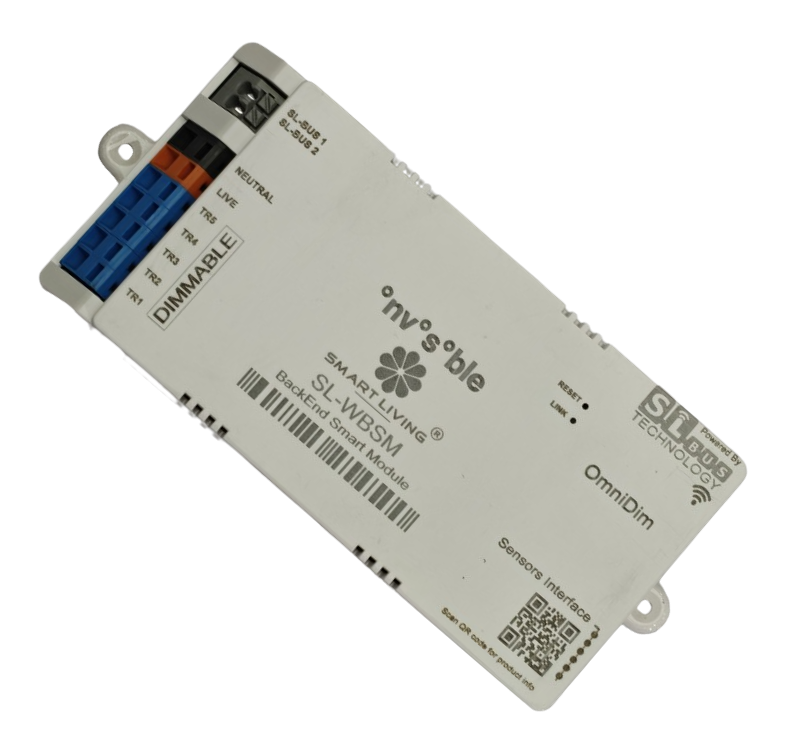

OmniDim5S
SL-WBSM-T5
Precision Engineering for Perfect Ambiance.
Precision atmosphere control meets industrial resilience. A 5-channel universal dimming module engineered for flicker-free lighting and silent fan regulation.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel TRIAC (1A MAX per channel OHMIC Load), Total Current <4AMP
Input Interface: 6/8-Channels – AC Sensor Inputs

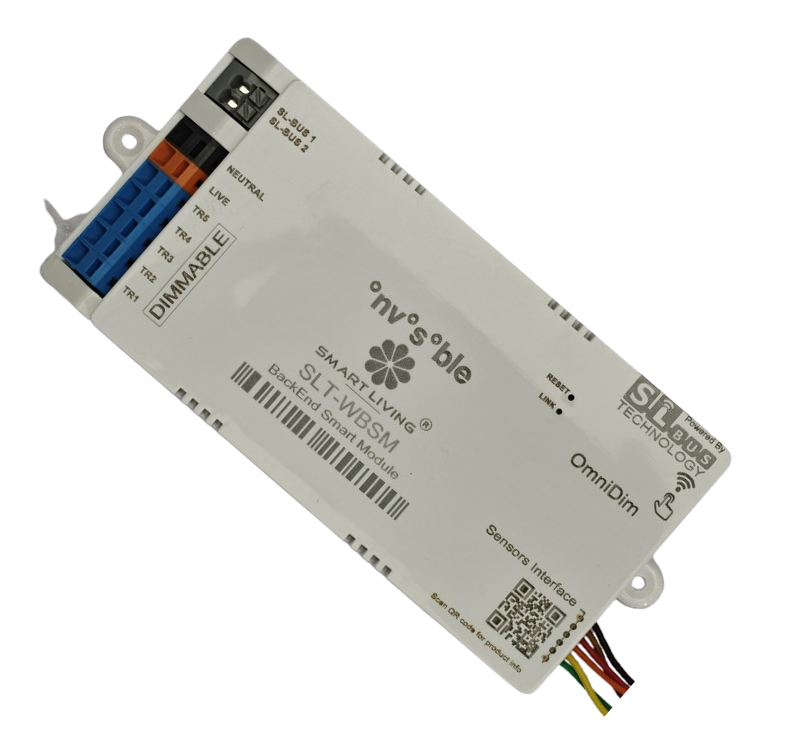

OmniDim5T
SLT-WBSM-T5
The invisible core of Luxury Products
.
Where aesthetic elegance meets intelligent dimming: A luxury-focussed 5-channel dimming muddle featuring a high-sensitivity 6-button touch interface.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel TRIAC (1A MAX per channel OHMIC Load), Total Current <4AMP
Input Interface: 6/8-Channels – Capacitive Touch Sensor Inputs
OmniDim5N
SLN-WBSM-T5
Ambience Meets Advanced Navigation
.
Where aesthetic elegance meets intelligent dimming: A luxury-focussed 5-channel dimming muddle featuring a high-sensitivity 6-button touch interface.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 5-Channel TRIAC (1A MAX per channel OHMIC Load), Total Current <4AMP
Input Interface: 6/8-Channels – HMI Touch LCD Panel Inputs

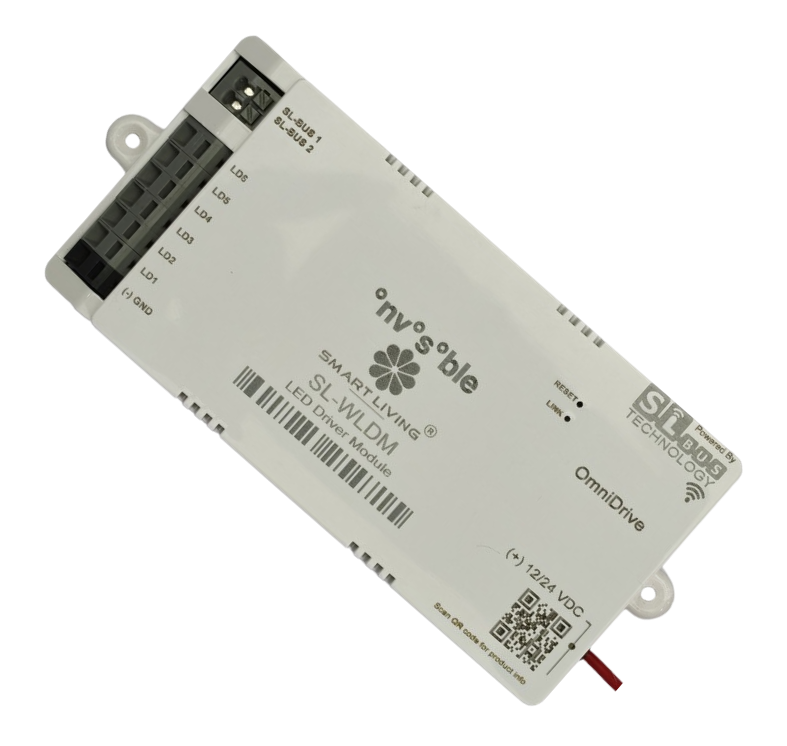

OmniDrive
OmniDrive6
SL-WLDM-D6
The Core of Your Color Identity.
OmniDrive6 is a Universal 6-Channel PWM Control for Constant Voltage LED Driver, specifically designed for Advanced lighting design for low-voltage precision control. It bridges the gap between sophisticated color-mixing (RGB-CCW), color-tuning(RGB-CCT) and professional DALI-standard architecture
Power Input: Universal 12-24 V DC, 50-60Hz
Communication: 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n
Output: 6-Channels (4A MAX per channel LED Load), Total Current <12AMP
OmniDriveNet
SL-WLDM-EWC
Wired Stability for Seamless Communication.
The SL-Bus Ethernet Interface is designed to provide a stable, wired communication bridge for SL-bus automation systems – enhancing reliability in environments where wireless networks may be congested or inconsistent.
Power Input: Universal 110-240 VAC, 50-60Hz
Communication: Ethernet 10BASE-T, 2-wire SL-Bus, Wi-Fi IEEE802.22b/g/n

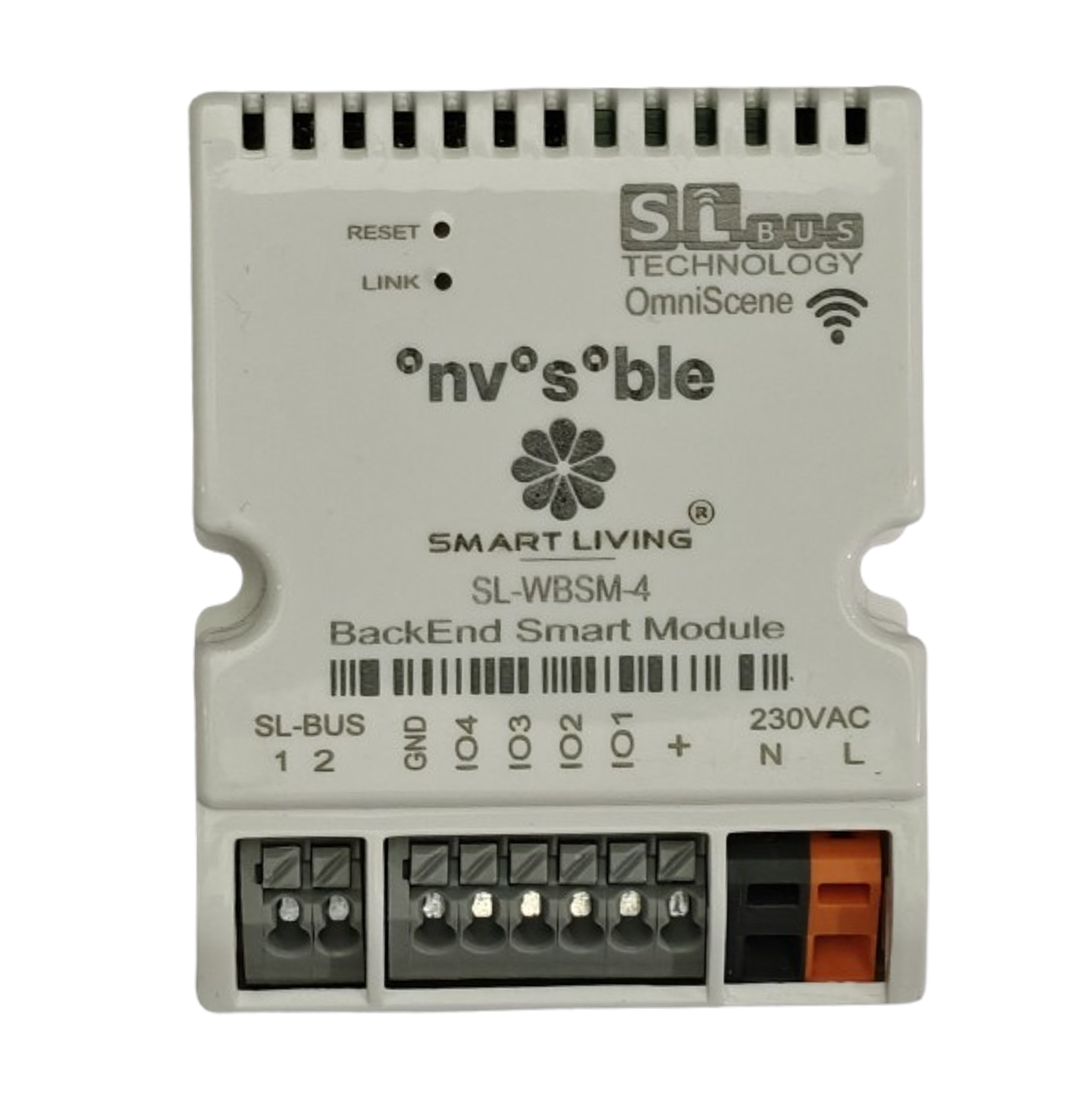

OmniScene
SL-WBSM-4
Intelligent Interface for Conventional Switches
-
Converts conventional switches into intelligent scene triggers.
-
4 configurable inputs with AC sensing & sensor integration.
-
Supports 24 programmable actions (press, hold, release).
-
Seamless retrofit without changing existing wiring.

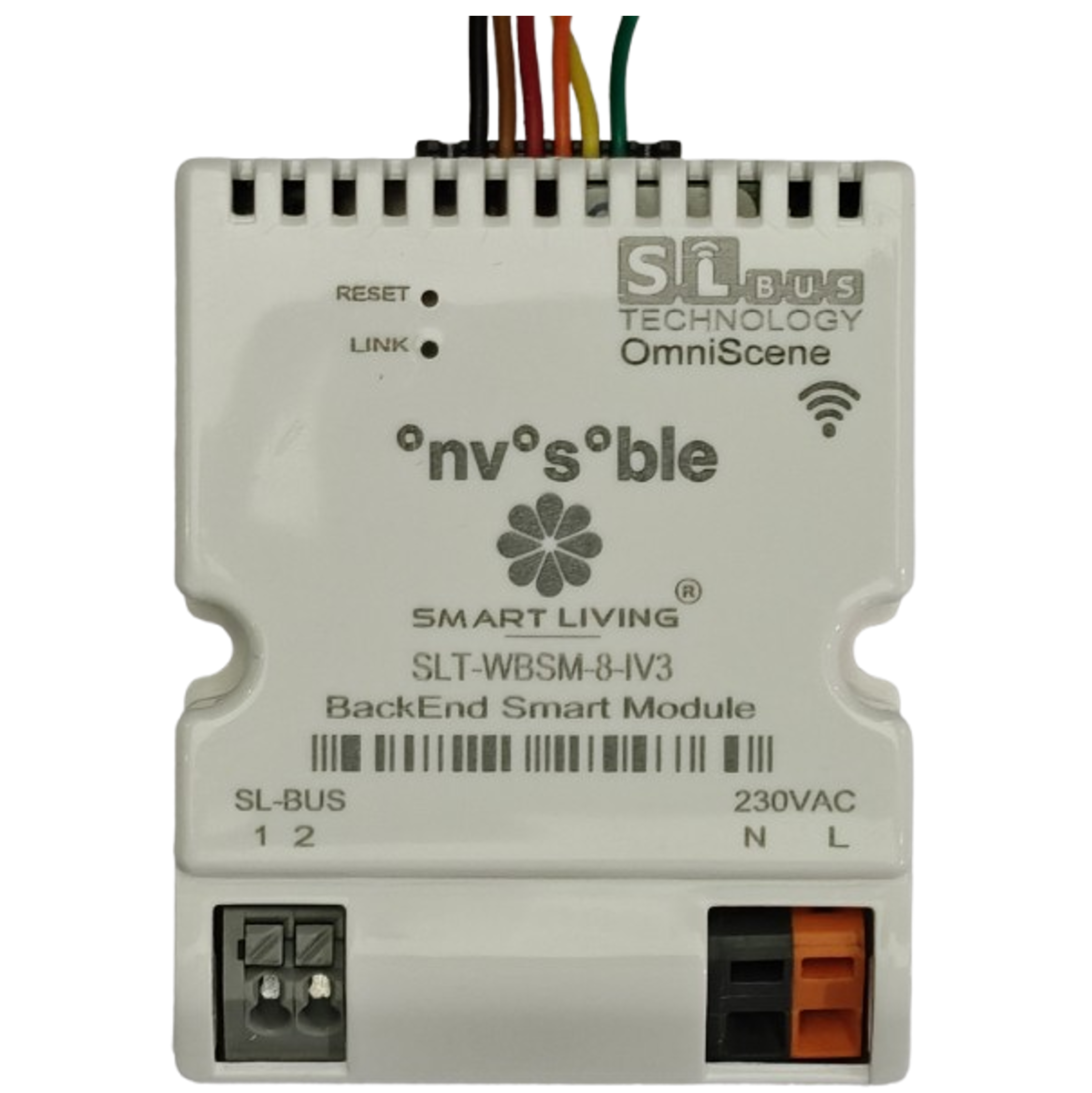

SLT-WBSM-4/6/8
Touch Driven Intelligence
-
Enables touch panels as responsive automation controllers.
-
4/6/8 input channels with flexible sensor integration.
-
24 programmable touch-based actions for precise control.
-
Designed for modern glass and capacitive switch systems
SLN-WBSM-4/6/8
Where Control Meets Experience
-
4/6/8 programmable touch keys for intuitive, personalized control.
-
Flexible UI mapping for scenes, devices and automation functions.
-
Seamless system integration with instant visual and tactile response.
-
Supports multi-event logic (press, hold, release) for advanced control

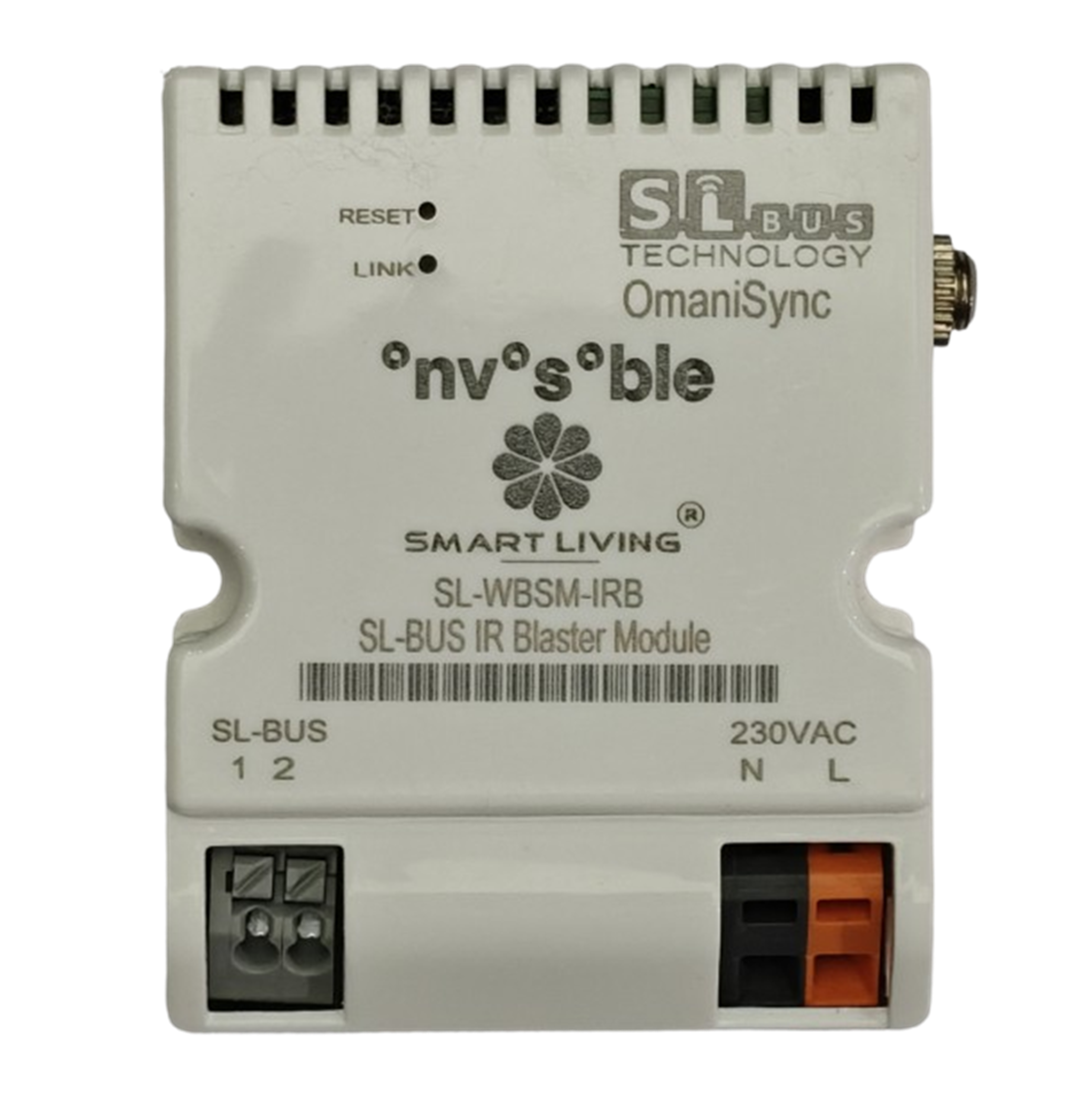

OmniSync
SL-WBSM-IR
Bridging Legacy with Intelligence
-
Learn and replicates IR Commands for TV’s, AC’s and AV devices.
-
Enables centralized control of legacy IR-based equipment.
-
Supports scene-based automation and synchronized control.
-
Seamless integration with automation system and app control.

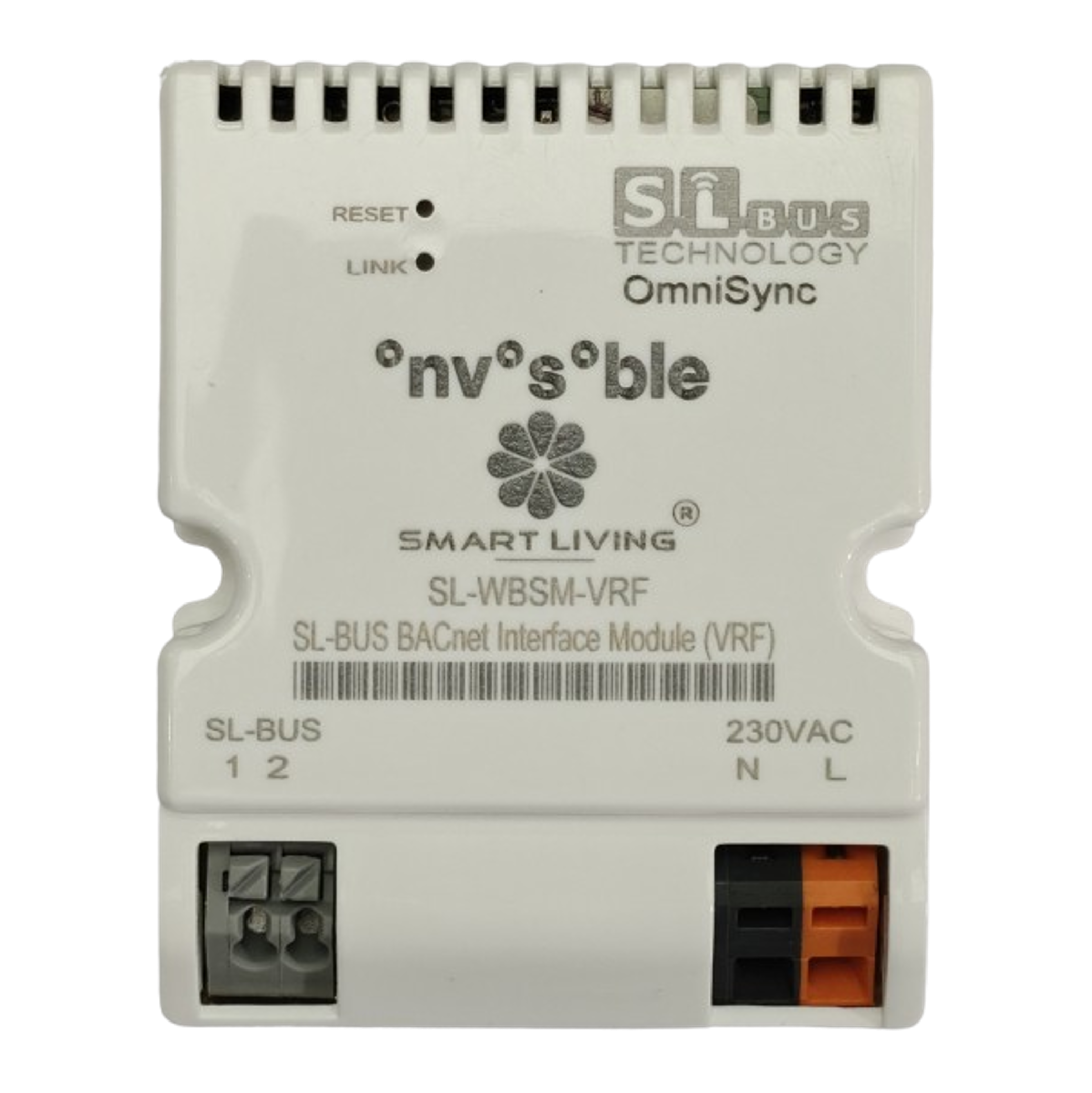

SLT-WBSM-VRF
Intelligent Climate, Perfectly Controlled
-
Integrates VRF HVAC system into a unified automation platform.
-
Enables centralized control of temperature, modes and zones.
-
Supports scheduling, scenes and energy-efficient operation.
-
Reliable communication with leading VRF system compatibility.

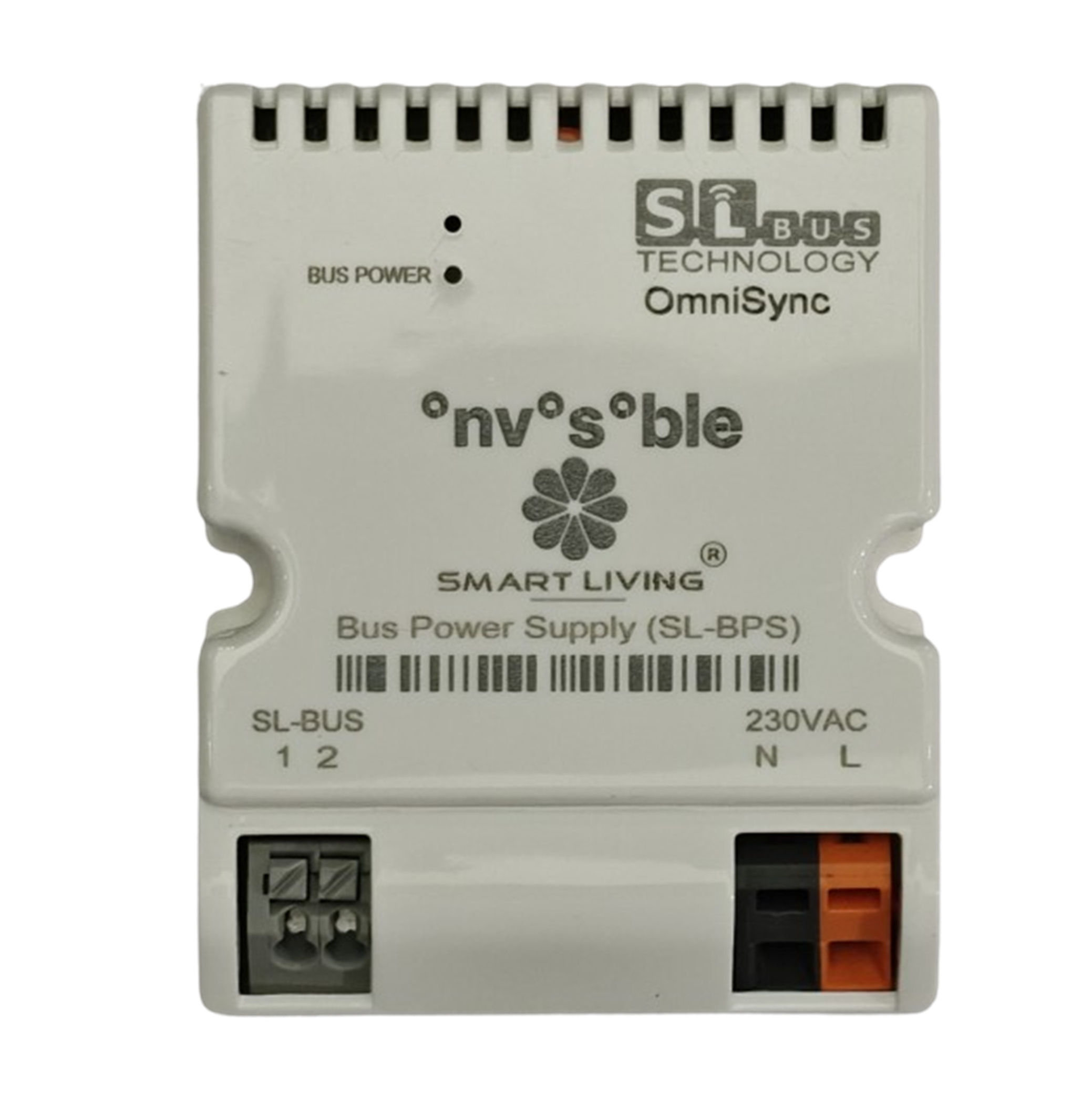

SLN-WBSM-BPS
Stable Power, Reliable Communication
-
Provides stable, regulated power for automation bus network.
-
Ensure reliable communication across connected devices.
-
Designed for continuous operation in residential and large-scale systems.
